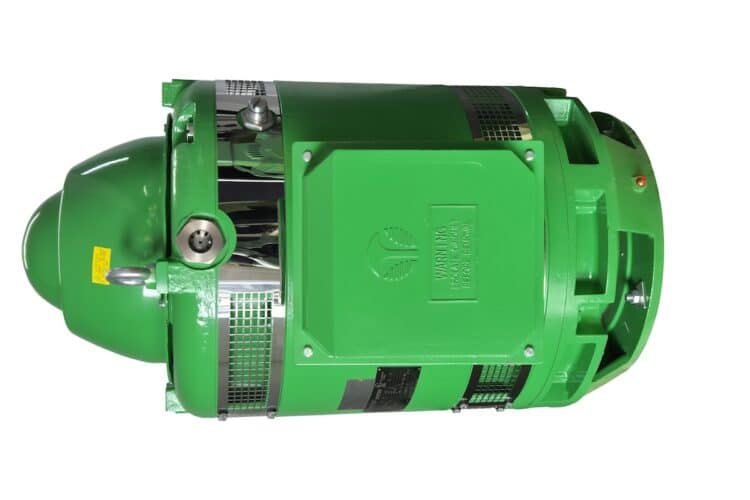

Techtop Australia has launched a new range of vertical hollow shaft electric motors engineered for reliability and performance in deep well and turbine pump systems. The series aims to meet the growing needs of the water, wastewater, and resource sectors.
Electric motors are the heart of pumping systems across a wide range of industries. When it comes to deep well and vertical turbine applications, few components are as critical as vertical hollow shaft (VHS) motors. Recognising this demand, Techtop Australia has expanded its VHS range to support Australian pump professionals with rugged, high-performance solutions tailored for challenging environments.
The new Techtop VHS series spans from 15 kW to 75 kW in two-pole models and from 15 kW to 300 kW in four-pole options. Designed to handle high axial loads, each unit includes a built-in non-reverse ratchet, high starting torque, and a service factor of 1.15. An enlarged oil chamber helps extend bearing life through better lubrication, while integrated thermistors and heaters ensure the motors perform reliably under varying load and temperature conditions.
A defining feature of Techtop’s VHS motors is their hollow shaft configuration. Unlike conventional vertical motors that require a coupling to connect the motor to the pump shaft, the hollow shaft design allows the pump shaft to pass directly through the motor. This reduces installation time, improves alignment, and helps cut maintenance costs by reducing mechanical complexity. The result is a more streamlined installation process and less downtime in the field, which is particularly valuable for remote or large-scale operations.
Built for durability, the motors feature a robust insulation system that includes UL (Underwriters Laboratories)-approved materials and copper wire compatible with variable voltage variable frequency (VVVF) drives. To enhance resistance to moisture and contaminants, a double vacuum pressure impregnation (VPI) process is used with non-hygroscopic epoxy varnish. Motors destined for harsh conditions such as coastal, mining, or humid areas receive additional tropicalised varnish to shield internal components from damage.
Vertical hollow shaft motors are a preferred choice in various sectors, including water and wastewater management, agriculture, pulp and paper processing, mining, and municipal infrastructure. These industries demand not only high performance but also longevity under pressure. The new VHS motors meet these expectations by striking a balance between technical excellence and practical design considerations.
Techtop’s VHS motors are already proving their value in demanding Australian environments. In regional Victoria, they are supporting deep-bore irrigation, where consistent water delivery is critical to crop viability. Mining operations in Western Australia have deployed the motors for dewatering tasks, where high axial loads and harsh conditions demand robust performance. Municipalities in New South Wales have integrated them into well pump stations servicing growing townships.
In each case, the motors have simplified installation and reduced maintenance overheads. These real-world applications demonstrate how the VHS range meets the practical needs of industry with reliability and minimal operational disruption.
As demand increases for water security and deeper well drilling, especially in regional and agricultural communities, motor reliability is more important than ever. Techtop’s VHS range supports sustainable infrastructure by providing energy-efficient solutions that reduce the total cost of ownership over the motor’s life cycle.
Techtop’s national presence ensures timely technical support and the availability of spare parts across Australia. With branches in Melbourne, Sydney, Brisbane, Adelaide, Perth, and Auckland, the company is well-positioned to serve a broad customer base with specialised motor solutions.
For pump professionals seeking dependable VHS motors backed by local expertise and responsive service, Techtop’s latest release offers a new level of assurance for critical infrastructure projects.
For more information, visit techtop.com.au
